Product Code: 74454
Earn [points_amount] with this purchase
AquaMax Pond Pump Specifications
| Dimensions (L x W x H) | 340 x 275 x 160 mm |
| Max Flow Rate | 21000 lph |
| Max Head Height | 6 m |
| Power Consumption | 20-180 w |
| Power Cable Length | 10 m |
| Solids Handling Capability | 11 mm |
| Hose Connection (Metric) | 25/32/38/50 mm |
| Filter Intake Surface | 1000 cm² |
| Setup Type | Underwater & Dry |
| Electronic Adjustment | Yes |
| Guarantee | 3 + 2 =5 Years |
| Net Weight | 6.9 Kg |
| Rated Voltage | 220-240 V / 50/60 Hz |
| Pressure-Side Connection | 2 |
| Suction-Side Connection | 2 |
| Oase Control Connection | Yes |
Bitron UVC Specifications
| Dimensions (L x W x H) | 730 x 215 x 200 mm |
| Rated Voltage | 220-240 V / 50/60 Hz |
| Power Consumption | 110 w |
| Power Cable Length | 5 m |
| Net Weight | 6.7 Kg |
| Guarantee | 2 Years |
| UVC Power | 110 w |
| Temperature Display | No |
| UVC Bypass | Manually |
| UVC Operating Hours Meter | No hours hours |
| Function Check | Visual |
| Number Of Inlets | 1 |
| Inlet Connections | 19/25/32/38/50 mm |
| Number of Outlets | 2 |
| Outlet Connections | 25/32/38 mm |
| Min Flow Rate | 12000 lph |
| Max Flow Rate | 40000 lph |
| Max Operating Pressure | 1 bar |
| Suitable For Ponds Up To Max | 110 m³ |
| Suitable For Ponds With Fish Stock | 55 m³ |
| Suitable For Ponds With Koi | 27.5 m³ |
| Connection to | BioTec 30, BioTec ScreenMatic2 90000/140000, ProfiClear |
Pond Filter Specifications
| Dimensions (L x W x H) | 788 x 590 x 645 mm |
| Inlet Connection (Metric) | 25/32/38/50 mm |
| Max. Pond Size | 90.0 m³ |
| Max. Flow Rate | 12500 lph |
| Max. Pond Size with Fish Stock | 45.0 m³ |
| No. Of Foams | 16 |
| No. Of Blue Foams | 4 |
| No. Of Red Foams | 6 |
| Max. Pond Size with Koi | 22.5 m³ |
| Power Consumption | 5 w |
| Outlet Connection (Imperial) | DN110 |
| Min. Flow Rate | 8000 lph |
| Temperature Display | No |
| Course Debris Extraction | 300 μm |
| No. Of Purple Foams | 6 |
| Special Filter Granulate | 5.00 Kg |
| Inlet Connection (Imperial) | 1"/1¼"/1½"/2" |
| Cable Length Transformer / 12v Device | 2.10 / 5.00 m |
| Suitable For Connection To | Bitron C 36 - 110W / Bitron Eco 120 - 240w |
| Guarantee + Request | 2 + 1 = 3 Years |
| Rated Voltage (Primary - Secondary) | 230V / 50Hz - 12V / AC |
| Net Weight | 27.00 Kg |
| Sludge Discharge Connections | DN50 |

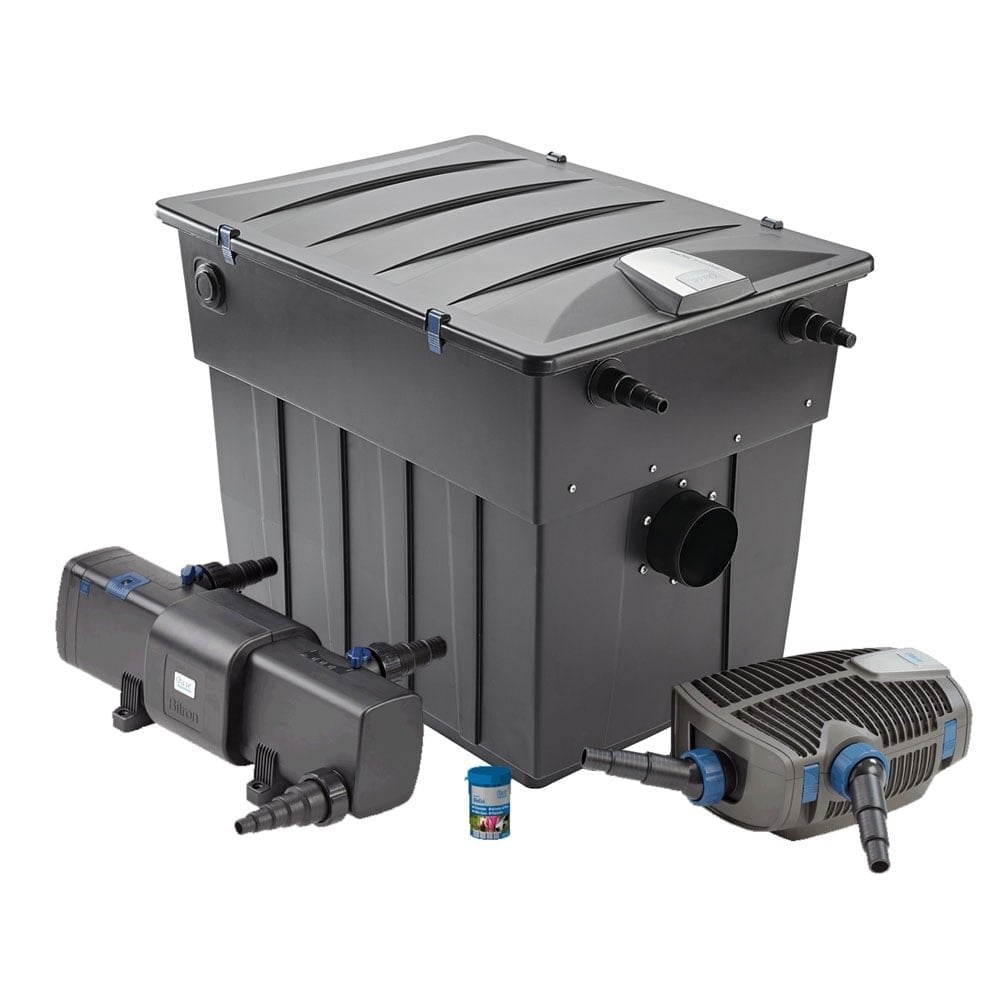

The Oase BioTec ScreenMatic² Set 90000 OC consists of the BioTec ScreenMatic² 90000 Pond Filter, the AquaMax Eco Premium 21000 Pond Pump and the Bitron 110C UVC. This optimally matched pump, filter and UVC set provides crystal clear water for ponds up to 90,000 litres.
The Oase BioTec ScreenMatic² 90000 OC is a compact, low maintenance flow-through pond filter providing mechanical and biological filtration; creating crystal clear water quality in ornamental, Goldfish and Koi ponds alike. The Biotec Screenmatic² is a follow on from one of the most advanced and well sold filters in the Oase Biotec family. The ScreenMatic² filter is a combination of all the well known features of its predecessor as well as enhanced benefits that have been introduced to make this filter more efficient and even easier to operate then ever before.

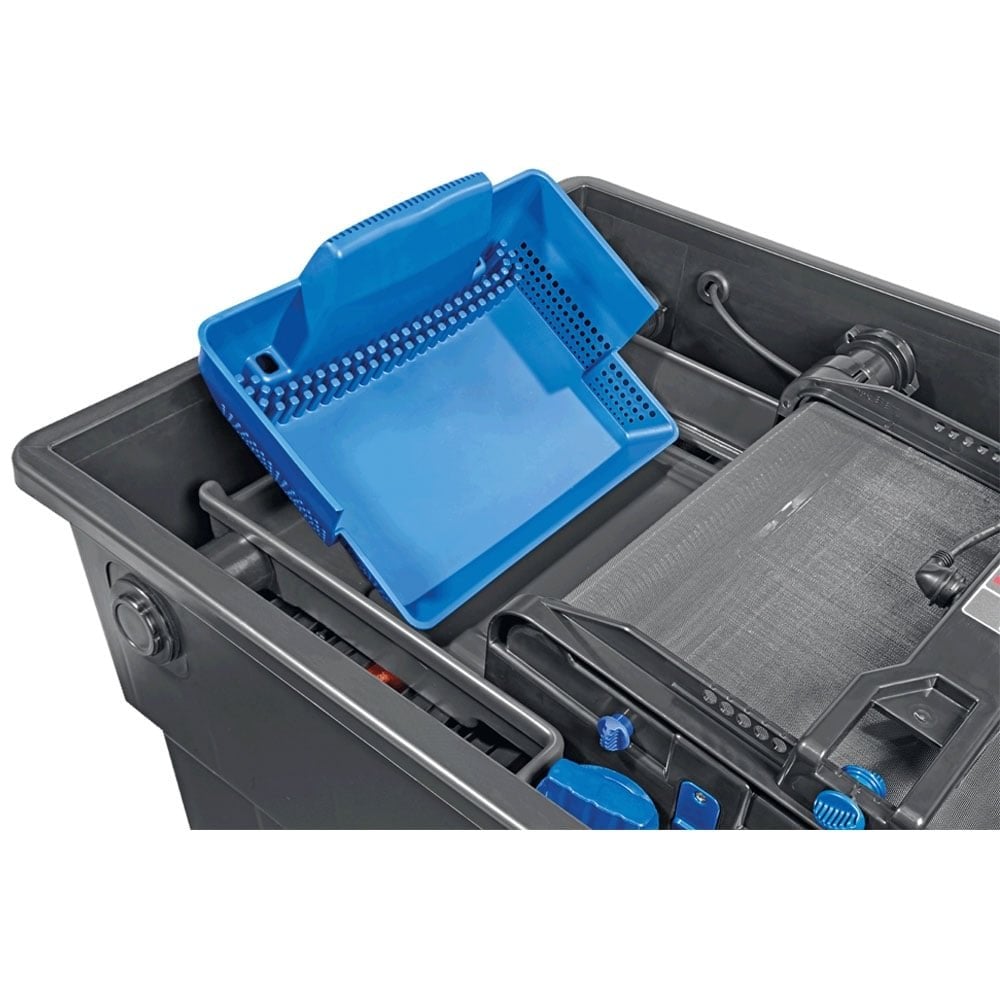

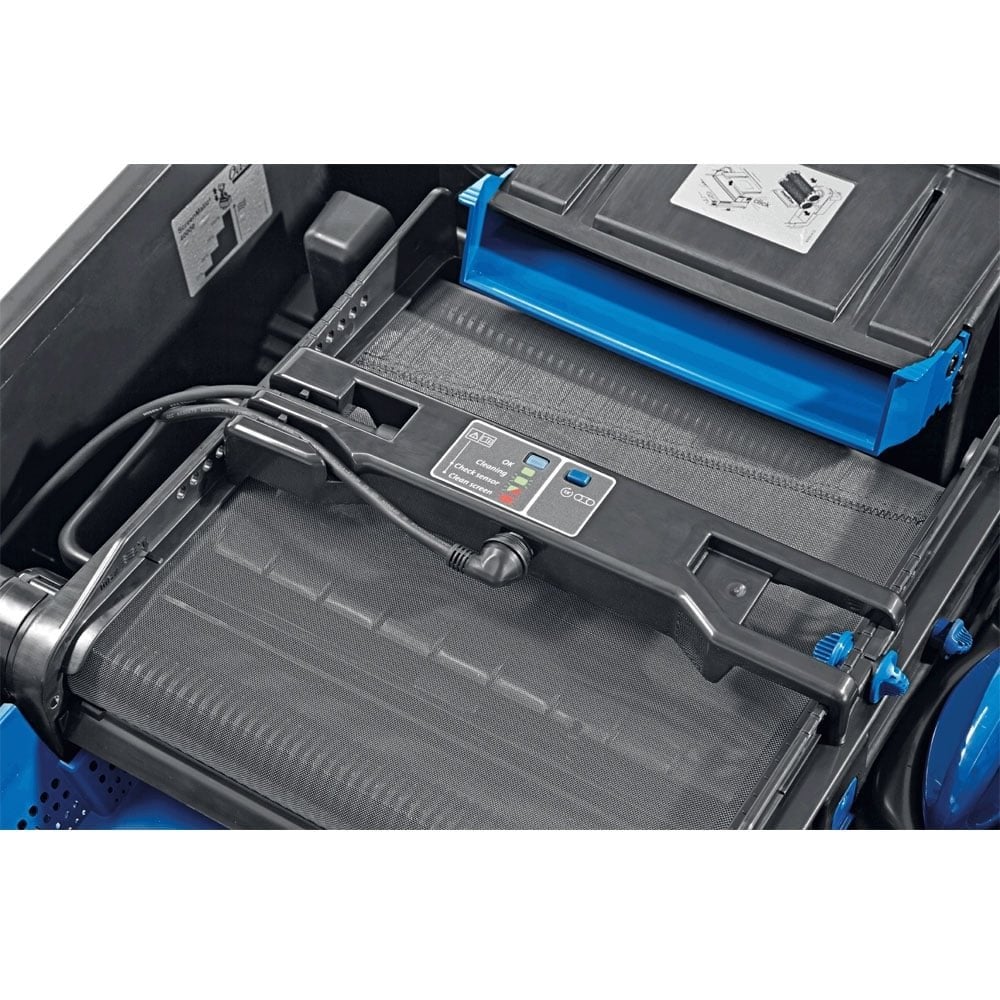

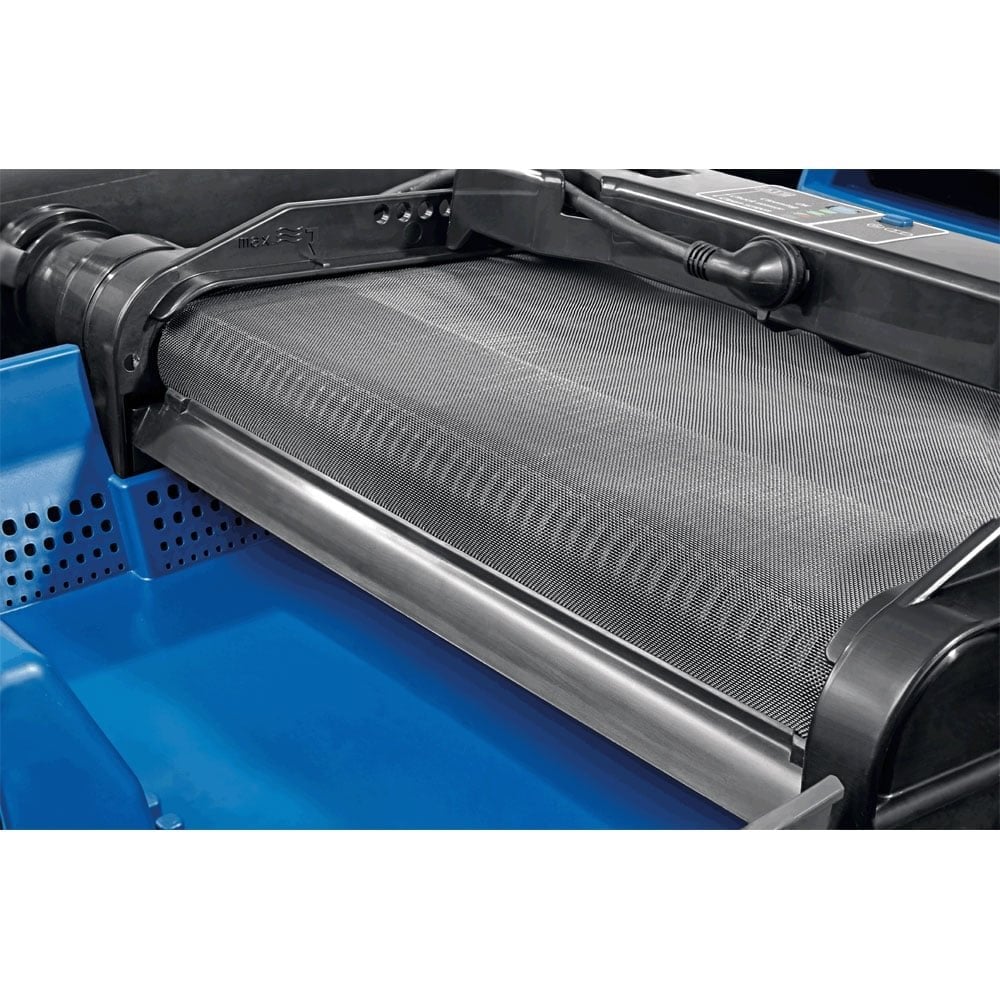

Water enters the Oase BioTec filter via a flow spreader which optimally distributes the water onto a 300 micron fabric belt designed to screen out any large debris. Once the screen becomes sufficiently soiled the intelligent sensor engages the automated cleaning cycle which transfers the accumulated waste into the sludge collection basket for periodic emptying. The Oase ScreenMatic's new control display also allows on the spot cleaning cycles at the press of a button. The automatic cleaning cycles can be adjusted to increase or decrease cleaning intervals dependent on the level of debris detected on the belt. Oase have included a handy cleaning brush to help keep the fabric screen free of entrapped dirt.

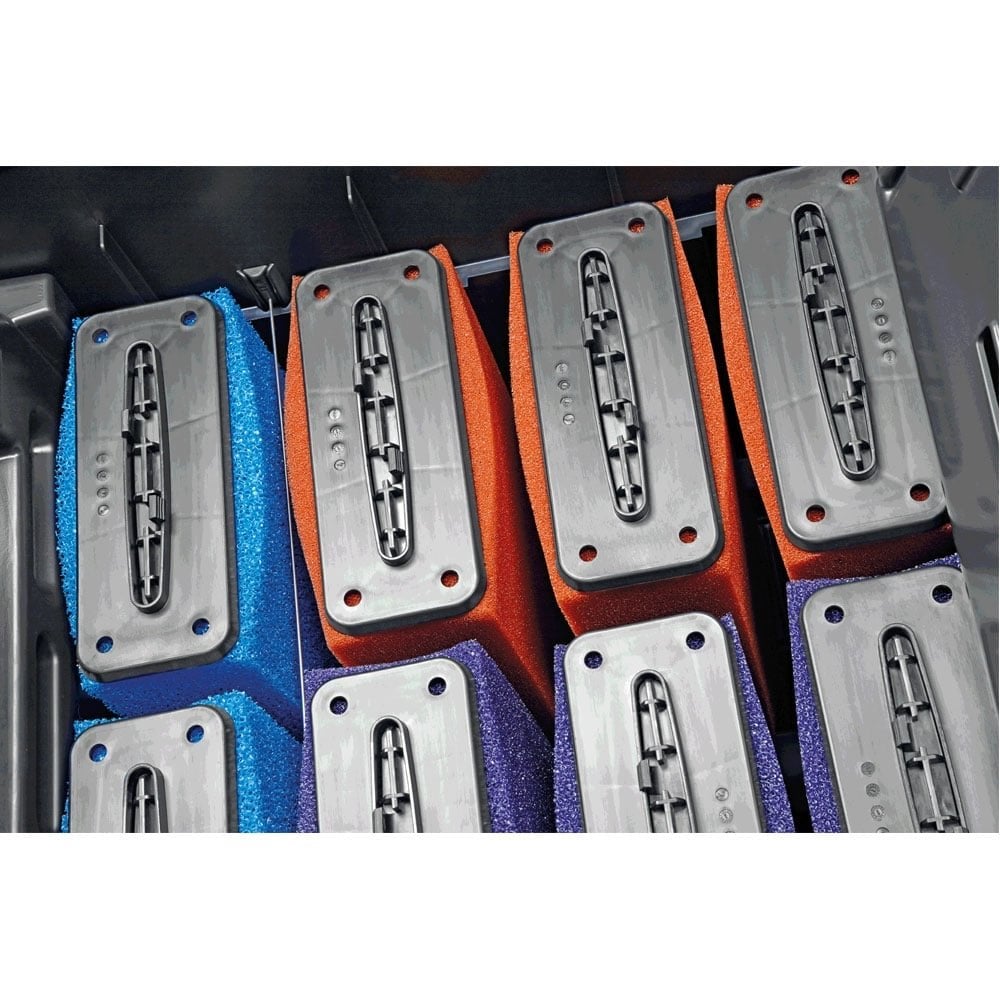

Once the pre-filtered water has passed through the ScreenMatic sieve it drops into the foam filter stage. The large surface area filter sponges vary in grade and provide both mechanical and biological filtration, removing any remaining debris from the water. You can easily clean the filter foams directly in the filter, without removal thanks to the compression handle. Simply use the handle to push down and compress the foams to release any build up of organic waste which can then be drained from the filter via the sludge drain. Lastly the water passes through zeolite media cartridges which absorb any remaining unwanted ammonia before the water returns back to the pond.
The Oase AquaMax Eco Premium 21000 Filter Pump provides an optimally matched flowrate through the filter, with solids handling capabilities of up to 11mm and a minimal energy consumption of just 180w. The Oase Bitron 110C UVC completes the filter set and is easily attached to the side of the Oase ScreenMatic² Filter eliminating green water algae.
