Oase BioTec ScreenMatic² Set 40000 OC

BioTec ScreenMatic² Set 40000 OC

Product Code: 74447

Product Summary
  • Complete set suitable for ponds up to 40m³
  • Combination of mechanical biological cleaning and effective UVC technology
  • Includes AquaMax Eco Premium 13000 energy efficient filter pump
  • Includes BioTec ScreenMatic² 40000 intelligent flow through filter
  • Includes Bitron 36C self-cleaning UVC clarifier
  • Includes BioKick Filter Starter for initial settlement of microorganisms
  • Backed by the Oase Clear Water Guarantee
  • Fast and easy set up
Was £1,499.10
Now £1,499.10 Was £1,577.99 Save £78.89

Earn [points_amount] with this purchase

Specification

AquaMax Pond Pump Specifications

Dimensions (L x W x H) 340 x 275 x 160 mm
Max Flow Rate 13000 lph
Max Head Height 5 m
Power Consumption 16-100 w
Power Cable Length 10 m
Solids Handling Capability 11 mm
Hose Connection (Metric) 25/32/38/50 mm
Filter Intake Surface 1000 cm²
Setup Type Underwater & Dry
Electronic Adjustment Yes
Guarantee 3 + 2 =5 Years
Net Weight 6.9 Kg
Rated Voltage 220-240 V / 50/60 Hz
Pressure-Side Connection 2
Suction-Side Connection 2
Oase Control Connection Yes

Bitron UVC Specifications

Dimensions (L x W x H) 600 x 180 x 198 mm
Rated Voltage 220-240 V / 50/60 Hz
Power Consumption 36 w
Power Cable Length 5 m
Net Weight 3.97 Kg
Guarantee 2 Years
UVC Power 36 w
Temperature Display No
UVC Bypass Manually
UVC Operating Hours Meter No hours hours
Function Check Visual
Number Of Inlets 1
Inlet Connections 19/25/32/38/50 mm
Number of Outlets 2
Outlet Connections 25/32/38 mm
Min Flow Rate 8000 lph
Max Flow Rate 30000 lph
Max Operating Pressure 0.5 bar
Suitable For Ponds Up To Max 40 m³
Suitable For Ponds With Fish Stock 20 m³
Suitable For Ponds With Koi 10 m³
Connection to BioSmart 18000/36000, BioTec ScreenMatic2 40000/60000

Pond Filter Specifications

Dimensions (L x W x H) 788 x 590 x 445 mm
Inlet Connection (Metric) 25/32/38 mm
Max. Pond Size 40.0 m³
Max. Flow Rate 9000 lph
Max. Pond Size with Fish Stock 20.0 m³
No. Of Foams 8
No. Of Blue Foams 2
No. Of Red Foams 3
Max. Pond Size with Koi 10.0 m³
Power Consumption 5 w
Outlet Connection (Imperial) DN75
Min. Flow Rate 4000 lph
Temperature Display No
Course Debris Extraction 300 μm
No. Of Purple Foams 3
Special Filter Granulate 2.50 Kg
Inlet Connection (Imperial) 1"/1¼"/1½"
Cable Length Transformer / 12v Device 2.10 / 5.00 m
Suitable For Connection To Bitron C 36 - 110W / Bitron Eco 120 - 240w
Guarantee + Request 2 + 1 = 3 Years
Rated Voltage (Primary - Secondary) 230V / 50Hz - 12V / AC
Net Weight 20.00 Kg
Sludge Discharge Connections DN50

Description

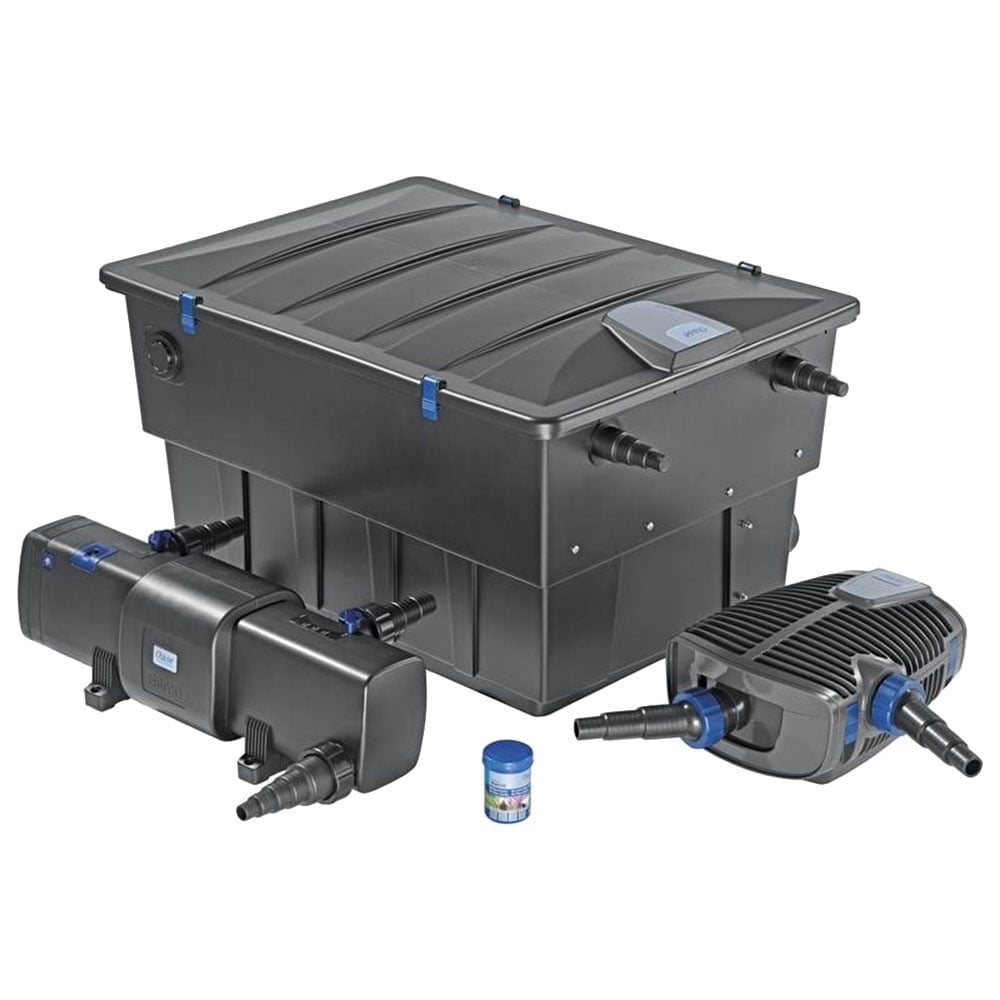

The Oase BioTec ScreenMatic² Set 40000 OC consists of the BioTec ScreenMatic² 40000 Pond Filter, the AquaMax Eco Premium 13000 Pond Pump and the Bitron 36C UVC. This optimally matched pump, filter and UVC set provides crystal clear water for ponds up to 40,000 litres.

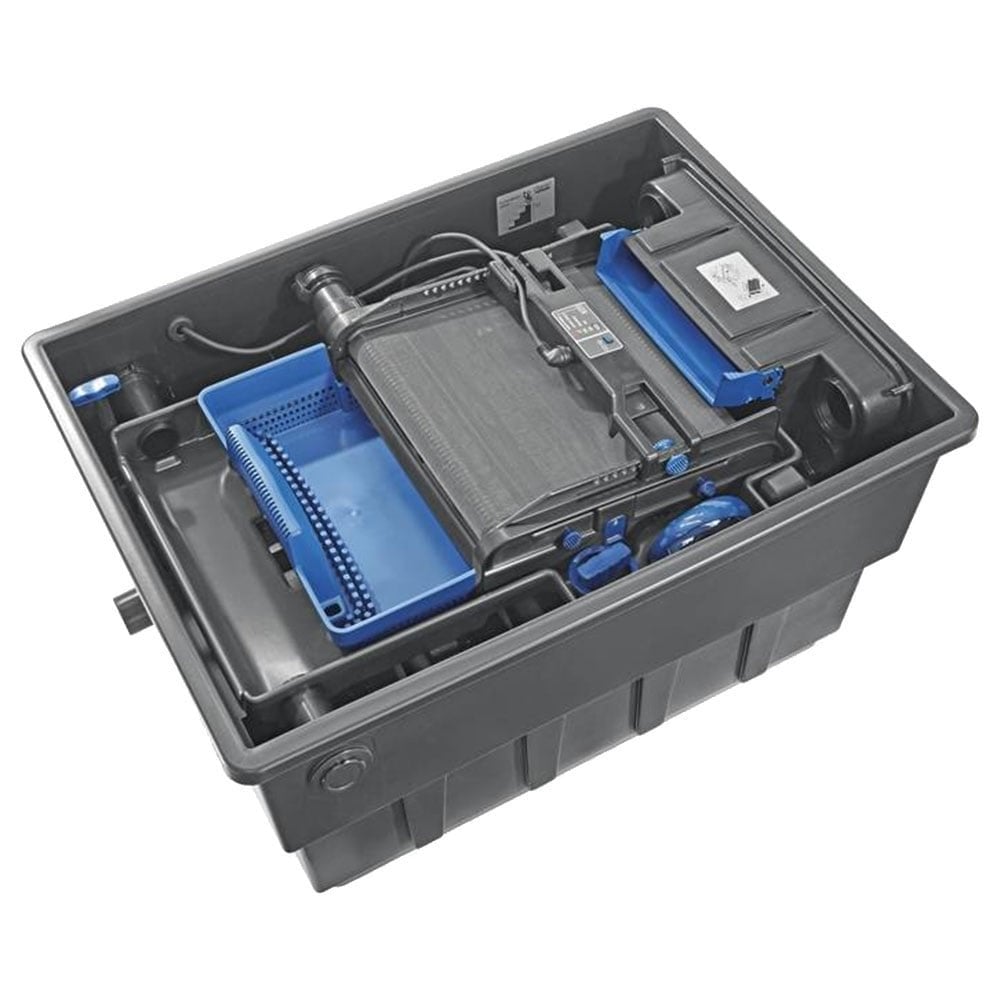

The Oase BioTec ScreenMatic² 40000 OC is a compact, low maintenance flow-through pond filter providing mechanical and biological filtration; creating crystal clear water quality in ornamental, Goldfish and Koi ponds alike. The Biotec Screenmatic² is a follow on from one of the most advanced and well sold filters in the Oase Biotec family. The ScreenMatic² filter is a combination of all the well known features of its predecessor as well as enhanced benefits that have been introduced to make this filter more efficient and even easier to operate then ever before.

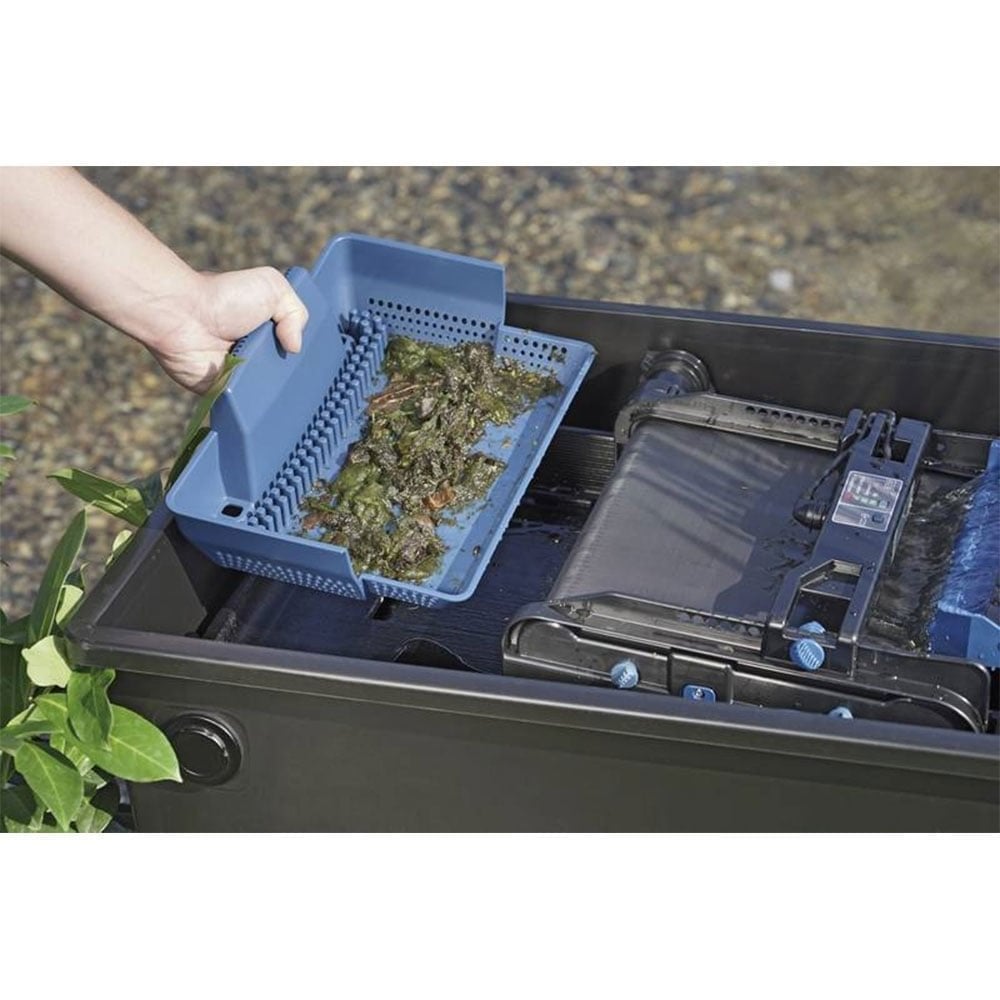

Water enters the Oase BioTec filter via a flow spreader which optimally distributes the water onto a 300 micron fabric belt designed to screen out any large debris. Once the screen becomes sufficiently soiled the intelligent sensor engages the automated cleaning cycle which transfers the accumulated waste into the sludge collection basket for periodic emptying. The Oase ScreenMatic's new control display also allows on the spot cleaning cycles at the press of a button. The automatic cleaning cycles can be adjusted to increase or decrease cleaning intervals dependent on the level of debris detected on the belt. Oase have included a handy cleaning brush to help keep the fabric screen free of entrapped dirt.

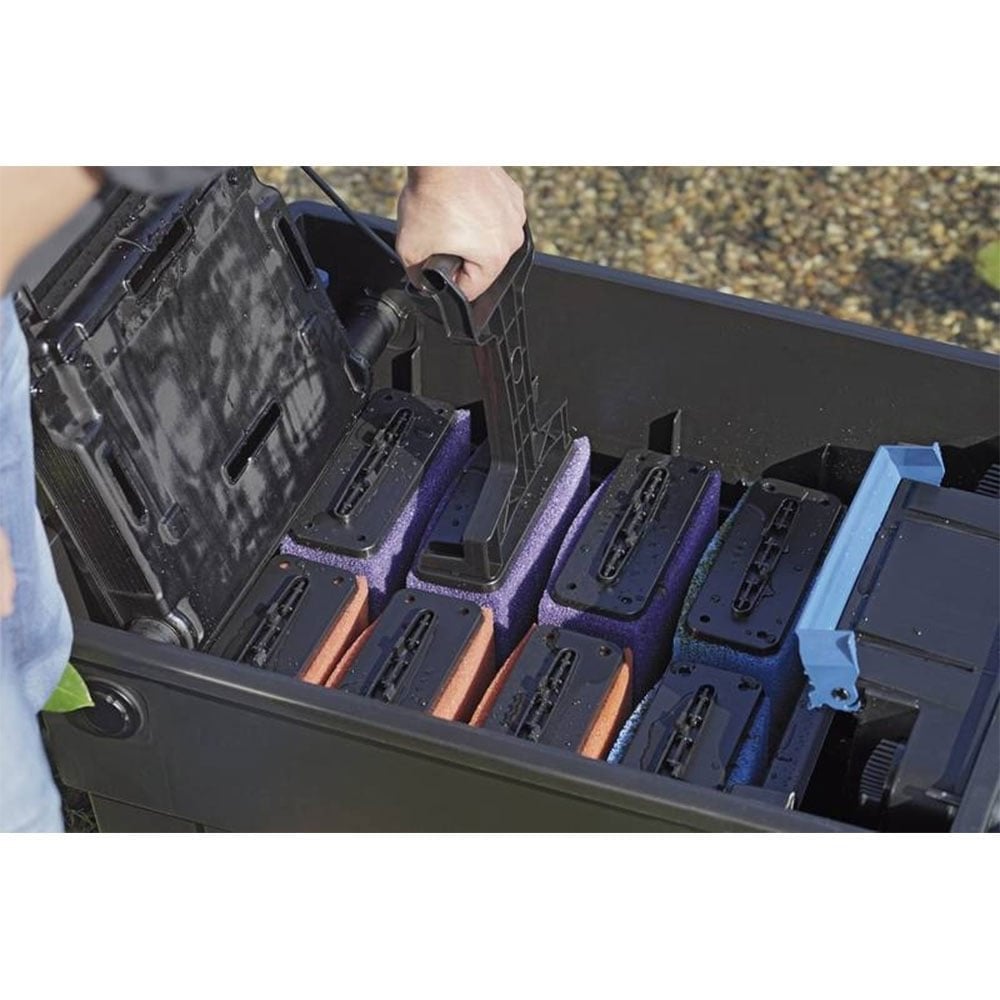

Once the pre-filtered water has passed through the ScreenMatic sieve it drops into the foam filter stage. The large surface area filter sponges vary in grade and provide both mechanical and biological filtration, removing any remaining debris from the water. You can easily clean the filter foams directly in the filter, without removal thanks to the compression handle. Simply use the handle to push down and compress the foams to release any build up of organic waste which can then be drained from the filter via the sludge drain. Lastly the water passes through zeolite media cartridges which absorb any remaining unwanted ammonia before the water returns back to the pond.

The latest Oase AquaMax Eco Premium 13000 Filter Pump provides an optimally matched flowrate through the filter, with solids handling capabilities of up to 11mm and a minimal energy consumption of just 100w. The Oase Bitron 36C UVC completes the filter set and is easily attached to the side of the Oase ScreenMatic² Filter eliminating green water algae.

Whats In the Box?

  • Oase Aquamax Eco Premium 13000 Pond Pump
  • Oase Bitron 36C UVC
  • Oase BioTec ScreenMatic² 40000 Pond Filter
  • Oase BioKick Filter Starter
